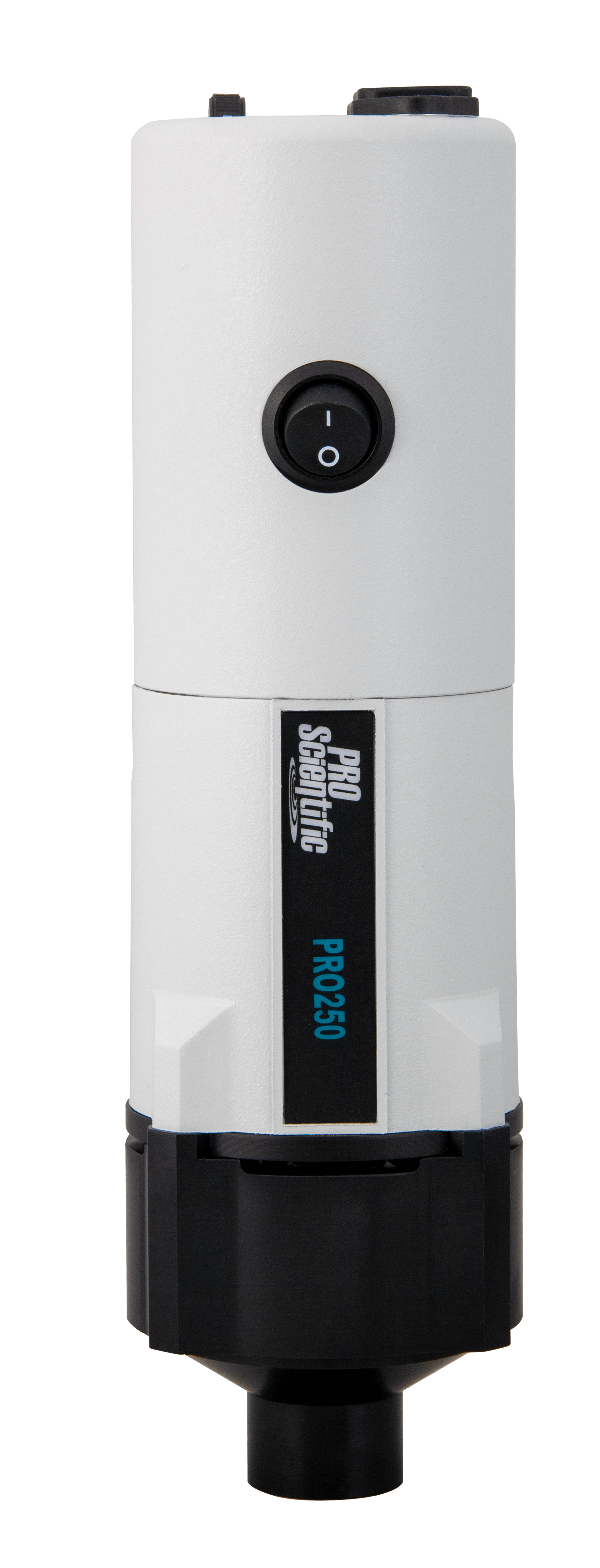

PRO 250 HOMOGENIZER
Hand-Held or Post-Mounted
Laboratory Homogenizer
|
NOW MANUFACTURED TO ACCEPT AN OPTIONAL DIGITAL
OR ANALOG SPEED CONTROL BOX
The PRO 250 homogenizer is a perfect fit between the PRO 200 homogenizer and the benchtop PRO homogenizers. It's lightweight enough to be handheld for convenience, yet has extra torque for processing difficult samples.
Combining the power of a 3/4 hp, 576 watt motor with a smooth variable speed control, the PRO 250 homogenizer handles a wide range of sample sizes. With PRO QUICK CONNECT rotor stator generators ranging in diameter from 5 mm to 30 mm, it can process samples from 0.03 ml to 20 L. The PRO 250 homogenizer also accommodates our SAFETY SEAL and Sealed Tube (ST) Series Chamber Assemblies with either a rotor stator generator or a blade.
|
|
Optional Digital Speed Control Box (shown) or Analog Speed Control Box (with dial knob to control speed) available for variable speed, 0 to 30,000 rpm.
|
Click here to see available generators
|
PRO 250 Homogenizer with 30mm x 150 mm generator
|
Specifications:
| Dimensions
|
|
2.75 x 9 x 2.75 in (w x h x d) / 6.9 x 22.8 x 6.9 cm
|
Weight
|
|
3.2 lb / 1.4 kg
|
Speed Range
|
|
10,000 - 30,000 rpm
|
Power
|
|
576 W
|
Sample vol
|
|
0.03 ml - 20 L
|
Noise Rating
|
|
72 dB
|
Speed Control
|
|
Analog; Variable Speed / digital-ready
| | | | | | |
|
| Catalog No.
| | Homogenizer Description
| 01-01250 |
| PRO 250 Homogenizer Hand-held or post-mounted, variable speed 10,000 to 30,000 rpm, 3/4 hp, 120 V, 50/60 Hz, 4.8 A. Includes: variable speed motor, tool kit, instruction manual
| 01-02250
|
| PRO 250 Homogenizer Hand-held or post-mounted, variable speed 10,000 to 30,000 rpm, 3/4 hp, 220 V, 50/60 Hz, 2.4 A. Includes: variable speed motor, tool kit, instruction manual
| 80-00250
|
| PRO 250 Homogenizer Stand Assembly Includes 24 in. post, base, motor cross rod, post clamp
| 80-00100
|
| Homogenizer Vessel Holder Assembly with Separate Support Post Includes: 80-00101 Vessel Holder Assembly with separate support post
| 80-00101
|
| Homogenizer Vessel Holder Assembly Includes: Cross rod, post clamp, vessel holder with strap
| 91-01270
|
| Homogenizer Speed Control Box, Variable speed: 0 - 30,000 RPM with digital display, 120 V, 50/60 Hz
| 91-02270
|
| Homogenizer Speed Control Box, Variable speed: 0 - 30,000 RPM with digital display, 220 V, 50/60 Hz
| 91-01250
|
| Homogenizer Speed Control Box, Analog variable speed: 0 - 30,000 RPM, 120 V, 50/60 Hz
| 91-02250
|
| Homogenizer Speed Control Box, Analog variable speed: 0 - 30,000 RPM, 220 V, 50/60 Hz
| | | | | | | | | |
|
|
